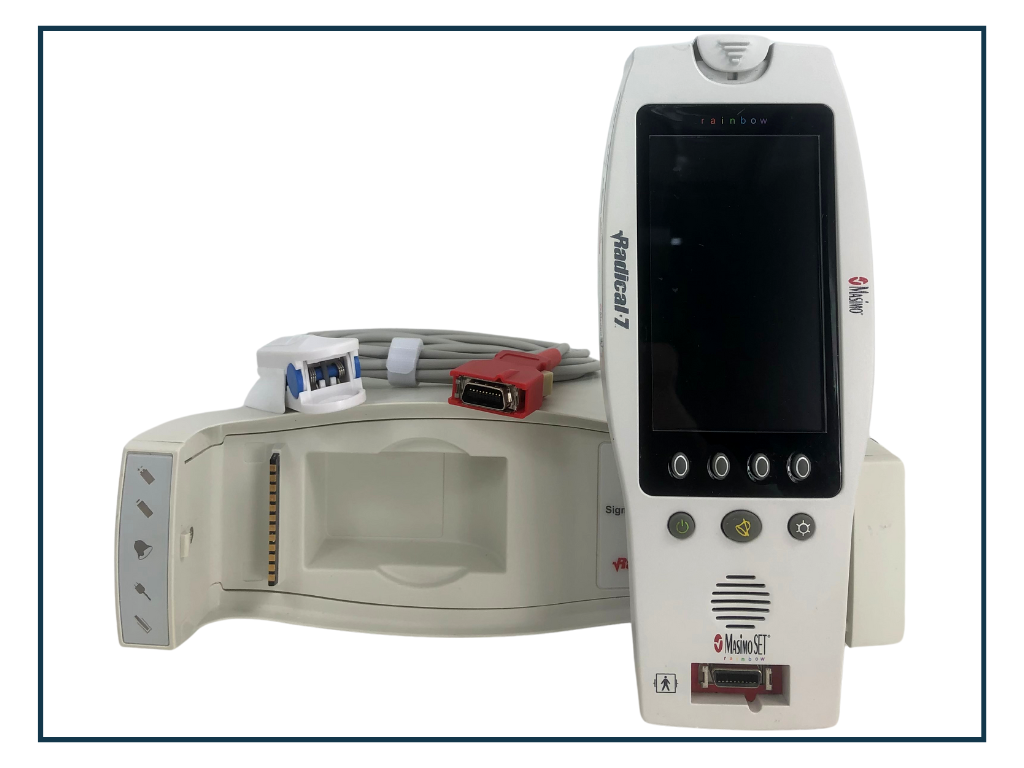

Radical 7 Masimo Pulse CO-Oximeter [Refurbished]

When connected to a Radical-7 Pulse CO-Oximeter, Root provides continuous monitoring using industry-leading Masimo SET Measure-through Motion and Low Perfusion pulse oximetry. In addition, the platform can be upgraded to provide Masimo rainbow SET technology, allowing clinicians to noninvasively monitor multiple additional physiologic parameters.

Radical 7 Masimo Pulse CO-Oximeter Specifications:

General

• Brand Masimo
• Model: Radical 7
• Category: Patient Monitor
• Parameters: SPO2
• Display Type: Dual Color OLED Display
• Length: 14 Inch
• Supplied with: Charging Station and Spo2 Sensor

Dimensions

• Dimensions: 8.9” x 3.5” x 2.1” (22.6 cm x 8.9 cm x 5.3 cm)
• Standalone: 3.5” x 10.5” x 7.7” (8.9 cm x 26.7 cm x 19.6cm)

Weight

• Handheld: 1.2 lbs (0.54 kg)
• Docking Station
  - Models RDS-1, 2, and 3: 2.5 lbs (1.14 kg)
  - Model RDS-1B: 3.1 lbs (1.41 kg)
• Standalone
  - Models RDS-1, 2, and 3: 3.7 lbs (1.68 kg)
  - Model RDS-1B: 4.3 lbs (1.95 kg)

Electrical

• AC power requirements: 100 – 240 VAC, 47 – 63 Hz
• Power consumption: 55 VA
• Fuses: 1 Amp, Fast Acting, Metric, (5x20mm), 250V

Batteries

Handheld

• Type: NiMH
• Capacity (battery life): 4 hours
• Charging time: 3 hours

Standalone (Model RDS-18 Only)

• Type: NiMH
• Capacity (battery life): 10 hours
• Charging time: 8 hours

Environmental

• Operating temperature: 41°F to 104°F (5°C to 40°C)
• Storage temperature: -40°F to 158°F (-40°C to + 70°C)
• Operating humidity: 5% to 95%, noncondensing
• Operating altitude: 500 mbar to 1060 mbar pressure
  -1000 ft to 18,000 ft (-304 m to 5,486 m)

Features:

• High strength, User-friendly
• Long-serving life with superior portability.

• Remote alarming interface.
• Accurate on cyanotic patients.
• Detachable portable hand-held for patient transport.
• Water resistant for ultimate protection in all conditions.

• Perfect for at-a-glance readings in a variety of clinical settings.
• Variable pitch provides tonal variance for every 1% change in saturation.

• Clinically proven to be the world's highest sensitivity and specificity pulse oximeter.

• Patented 3D alarms provide thresholds for desaturations and perfusion index based on clinician-specified severity and frequency, enhancing patient safety.

 ** All used goods are reconditioned by Tomlin Medical Pty Ltd. Used goods are not endorsed or supplied by their original manufacturer and are not subject to any manufacturer warranty. All used goods are subject to the limited warranty provided by Tomlin Medical Pty Ltd.**
